Plot a from-above view of a tree inventory — plot

Visualizes a forest inventory as ellipses representing tree crowns.

Usage

plot_inventory(trees_inv, core_polygon_df = NULL, show_id = TRUE)

trees_inv: A data.frame of trees that passed check_inventory.
core_polygon_df: Optional data.frame defining the core inventory polygon. Must contain columns x and y.
show_id: Logical; if TRUE (default), displays tree identifiers at crown centers.

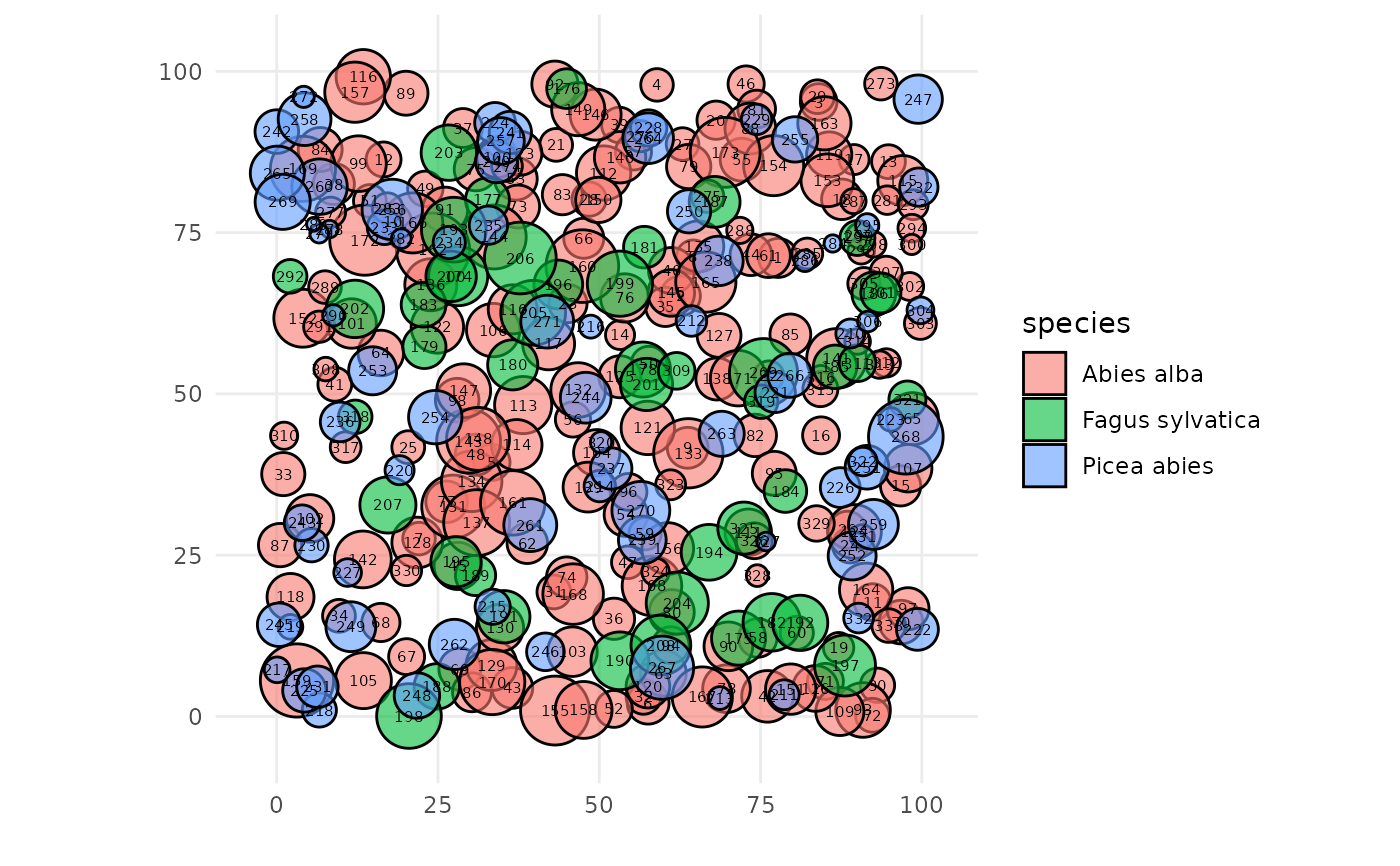

A ggplot object displaying the trees in a from-above view.

Because the north2x variable is unknown, trees are plotted as circles by considering the mean radius on the four cardinals.

data_prenovel <- SamsaRaLight::data_prenovel
trees_inv <- data_prenovel$trees

plot_inventory(trees_inv)
